Principle and Importance of SMT SPI Solder Paste Inspection Machine
Overview: The SMT SPI solder paste inspection machine is an indispensable key equipment on the surface mount technology production line. It is mainly used to detect the quality of solder paste printed on PCB boards to ensure the accuracy of subsequent component mounting.
Working principle
1 The image acquisition system SPI captures the three-dimensional image of solder paste through a high-resolution camera. The system uses specific light sources and optical lenses to capture the height, area and volume data of the solder paste.
2 The collected image data is transmitted to the processing unit for real-time analysis. The algorithm will compare the preset process parameters to identify the printing defects of the solder paste. The inspection items include issues such as the thickness, drift, bridging and insufficient solder of the solder paste.
3 The result output and feedback detection results will be immediately displayed on the operation interface. The system can automatically determine whether it is qualified or unqualified and provide real-time feedback to the printing machine for adjustment. This forms a closed-loop control, continuously optimizing the printing quality.
Importance and Benefits
1 SPI inspection can enhance product quality and detect solder paste printing defects early, preventing defective products from flowing into subsequent processes. Effectively prevent poor soldering caused by solder paste issues and significantly increase the product's first-pass rate. This is particularly crucial for the assembly of high-density, fine-pitch components.
2 Early detection of defects reduces production costs, lowering maintenance and rework expenses. Through real-time monitoring and feedback, the usage of solder paste was optimized, and material costs were saved. At the same time, it has reduced customer returns and reputation losses caused by quality issues.
3 The automated inspection process has significantly reduced the time for manual inspection, enhancing production efficiency. The rapid detection and feedback mechanism of SPI ensures the efficient and stable operation of the production line. It has achieved 24-hour uninterrupted quality monitoring and enhanced the overall production capacity.
The SMT SPI solder paste inspection machine, through precise three-dimensional detection technology, ensures the quality and efficiency of the SMT production line. Its significance in modern electronic manufacturing is increasingly prominent, becoming the core guarantee for high-quality PCB assembly.

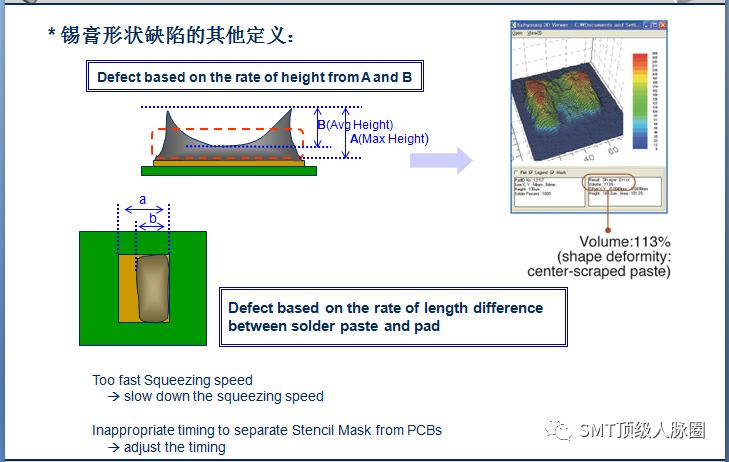

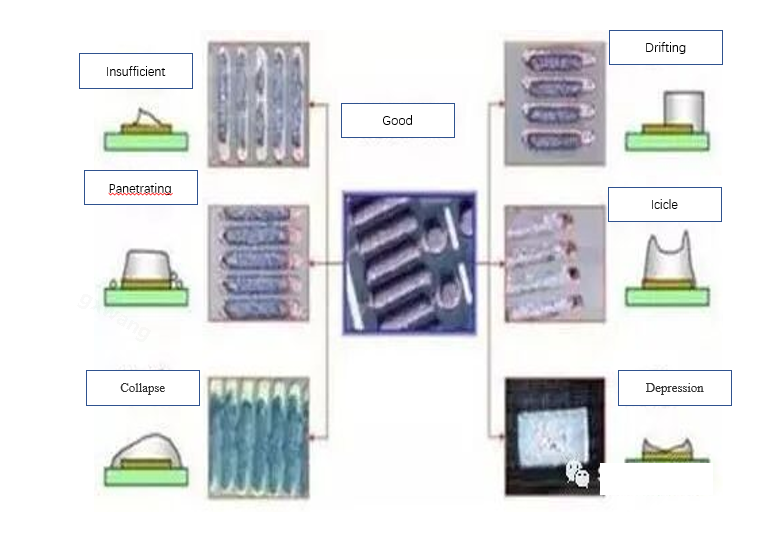

diagram of poor solder paste printing

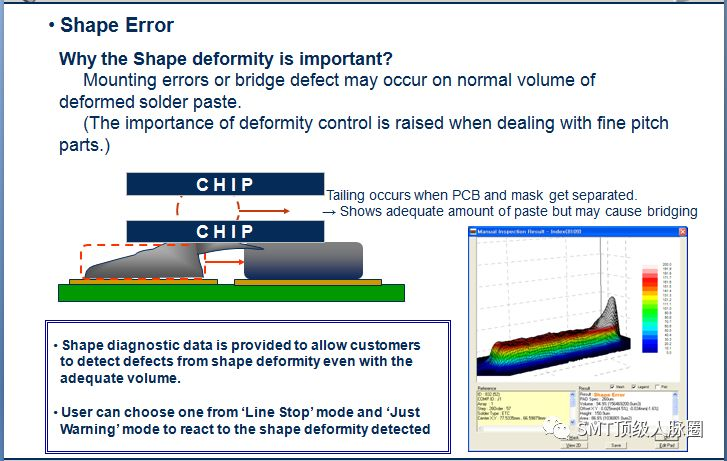

An introduction to the detection capabilities of the solder paste testing machine

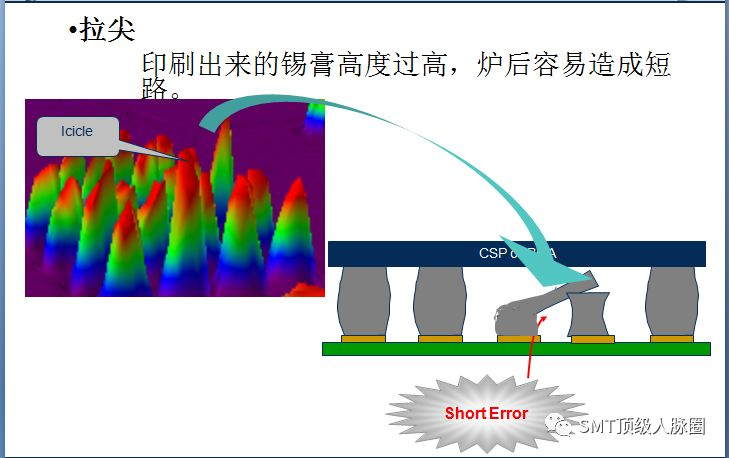

Icicle Printed paste is too high, it is easy leading to short,

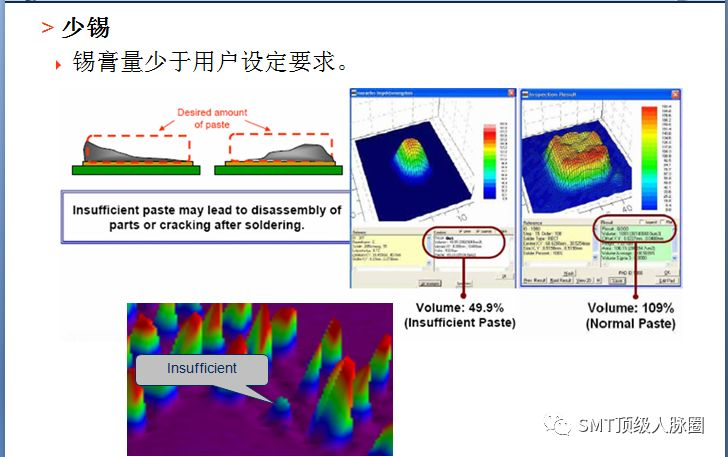

Insufficient

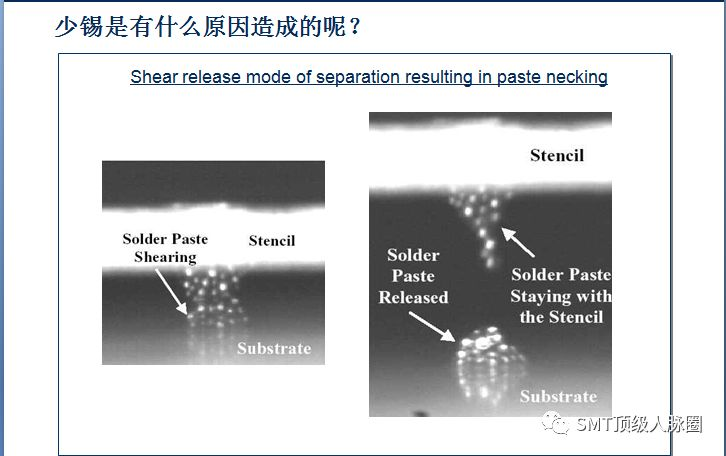

Cause of insufficient

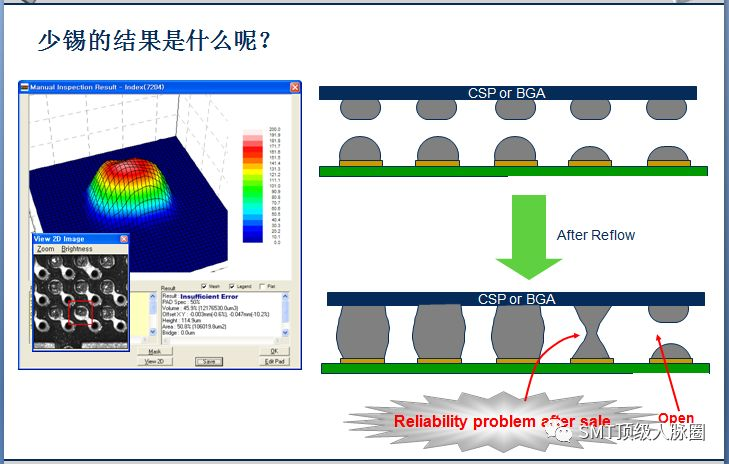

Insufficient results in poor reliability

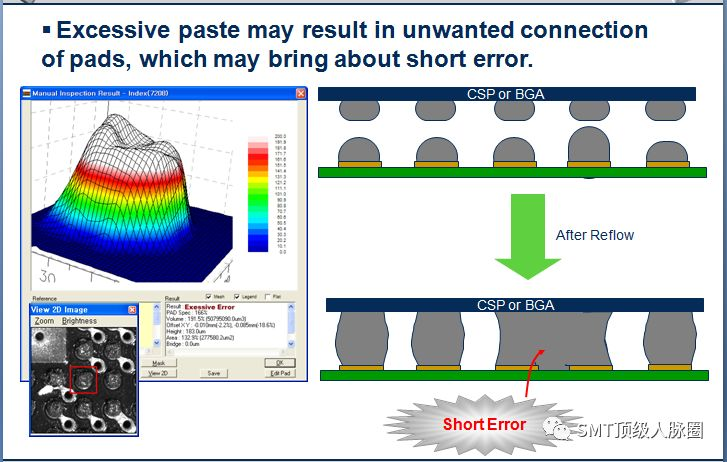

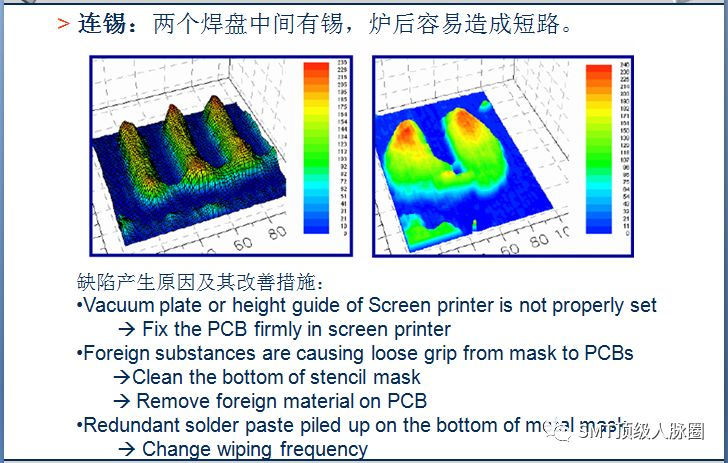

Surplus Past and results , connection and short
--

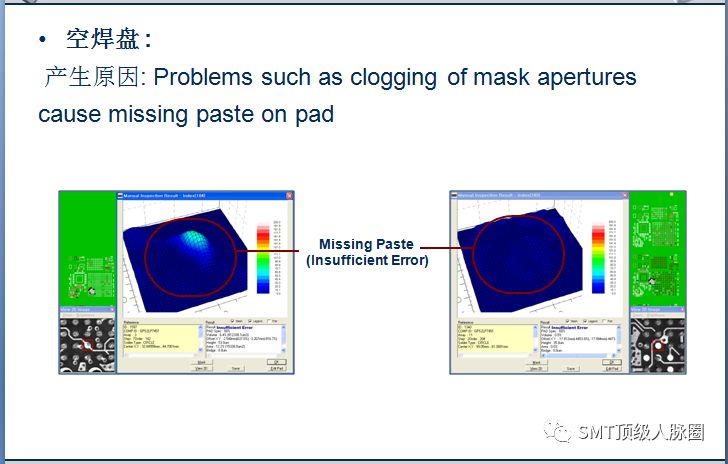

Missing Paste

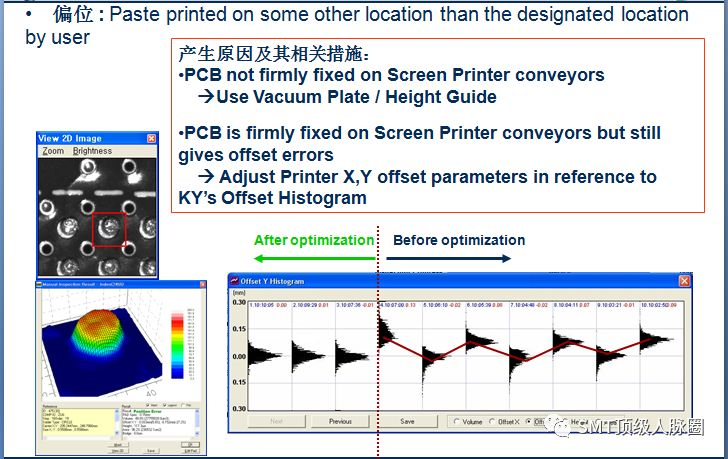

Drifting

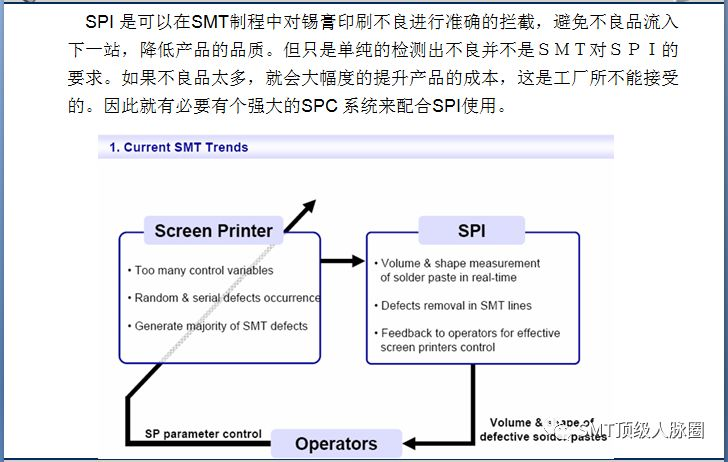

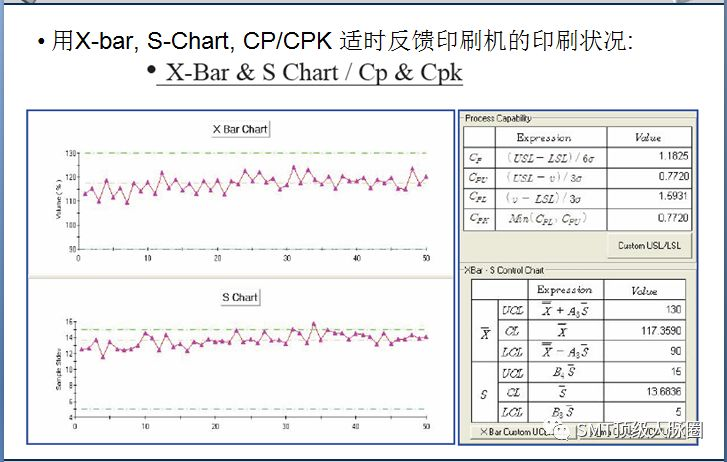

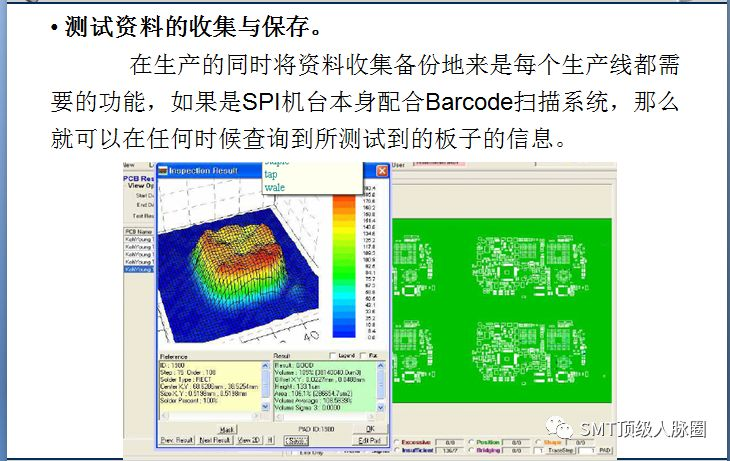

SPC in Application of Solder Paste Detection, and Interception in defective printing

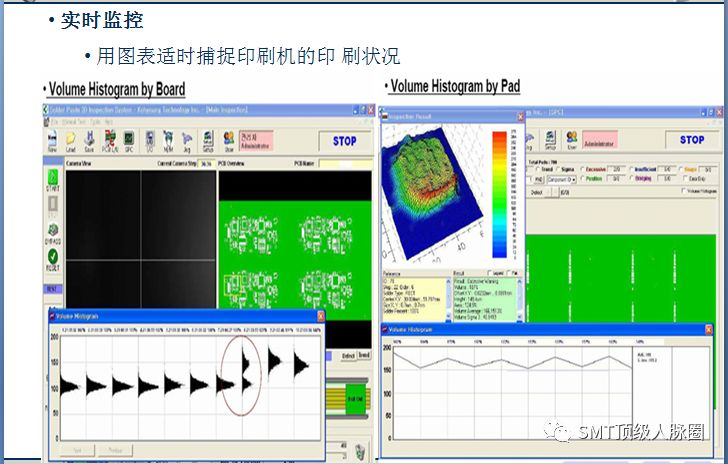

Timely monitoring

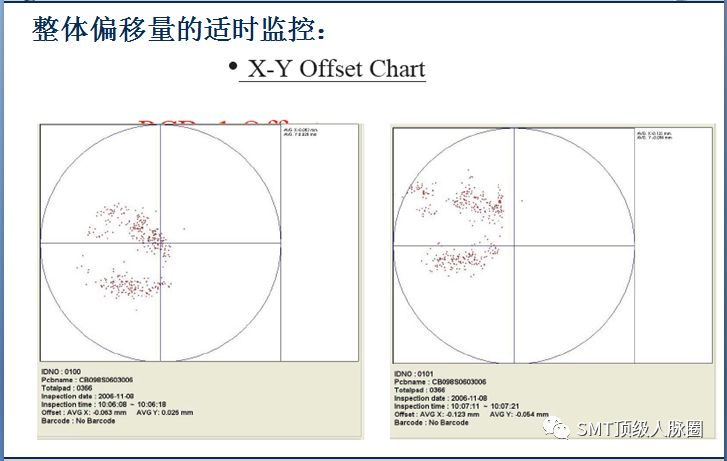

Measuring of Drifting

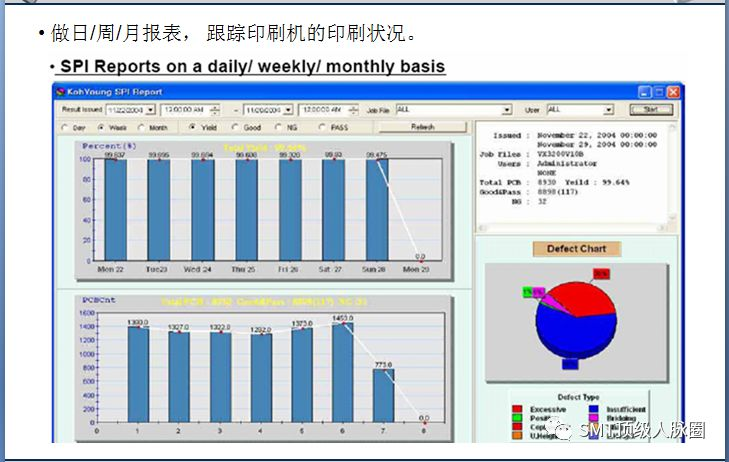

Paster printing machine maintenance Day/week/Month
